High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester

High Precision AC220V Differential Pressure Leak Tester

원래 장소 중국 광동
브랜드 이름 Sunhope
제품 세부 사항
제어 모드:
자동/매뉴얼
작업 스테이션:
1
힘:
전자
테스트 매체:
가스(물)
압력:
최대 10MPa
전원공급장치:
0 ~ 380V
결제 및 배송 조건
최소 주문 수량
1세트
가격
협상 가능
포장 세부 사항
safty 패킹 marials를 가진 나무로 되는 케이스
배달 시간
50 일
지불 조건
신용장, 티/티
공급 능력
100 세트/월
제품 설명

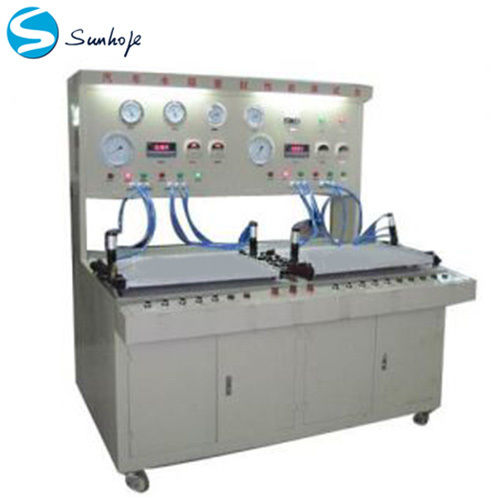

High Precision AC220V Differential Pressure Leak Tester
Product Description

The High Precision AC220V 10MPa Radiator Leak Tester is a differential pressure leak detector engineered for online inspection. It operates by simultaneously pressurizing the test piece and a reference standard with clean, dry compressed air. After the air supply is sealed off, the instrument meticulously monitors for any pressure difference between the two. If the test piece has a leak, a measurable pressure difference occurs. By calculating and analyzing this differential pressure value, the tester accurately determines whether the item meets airtightness standards.

Advantages
  • High Precision Measurement: Utilizes a high-accuracy differential pressure sensor for exceptional measurement precision and reliable results.

  • Intelligent Operation: Features a fully automated intelligent system with a user-friendly 7-inch display for simple, intuitive control.

  • Data Management & Output: Includes a USB data export function and offers an optional printer for generating physical test reports.

Technical Parameters
ParameterSpecification
Test Pressure10MPa
Test Range±0.5Kpa, ±1Kpa, ±2Kpa
Pressure UnitsKpa, Mpa, PSI, bar
Leakage Value UnitsPa, Pa/s, mL/min
Differential Pressure Resolution1Pa
Power SupplyAC220V
Air Source RequirementClean, dry, stable compressed air
