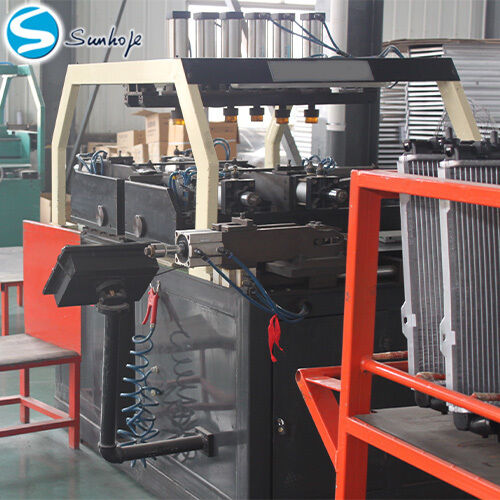

The Four-Sided Semi-Automatic Radiator Tank Crimper is a specialized pneumatic machine designed for securely attaching plastic tanks to radiator cores. Operating at 0.8Mpa, it applies simultaneous pressure from all four sides to create a consistent, leak-proof seal. This model is ideal for manufacturing and repair workshops focused on automotive and heavy-duty truck radiators, offering a balance of automated power and manual control.
Dual-User Operation: Engineered to allow one or two workers to operate the machine concurrently, effectively doubling productivity and optimizing labor costs.
Fully Adjustable Settings: The stroke length and pressing force are manually adjustable to suit different material thicknesses. Operators can also select from different tab pressing plate widths (20/30/40mm) to match specific tank designs.
Powerful Pneumatic Drive: Equipped with 6 to 8 cylinders to ensure uniform force distribution and reliable performance throughout the crimping cycle.
Certified Quality Control: Each machine is built with strict quality checks at every stage and holds CE, FCC, and ROHS certifications, ensuring safety and durability.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Brand Name | SUNHOPE | Warranty | 12 Months |
| Machine Type | Plastic Tank Crimper | Application | Automobile / Truck Radiators |
| Driving Mode | Pneumatic | Air Pressure Requirement | 0.8 Mpa |
| Voltage / Power | 220V / 50Hz, 2.5kw | Number of Cylinders | 6 - 8 |
| Workstations | 2 | Production Efficiency | ~60 seconds per unit |
| Indenter Width Options | 20 / 30 / 40 mm | Max Head Plate Size | 120 mm |
| Max Core Size | 1000 x 900 x 56 mm | Running Speed | Adjustable |
| Machine Dimensions | 1300 x 1200 x 1800 mm | Machine Weight | 800 kg |
| Surface Treatment | Vertical Bright / Matte | Mold / Shape | Customizable |
| OEM Service | Available | Programmable | Non-Programmable |
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
