알루미늄 호일 장
>
|
| 원래 장소 | 중국 광동 |
| 브랜드 이름 | Sunhope |

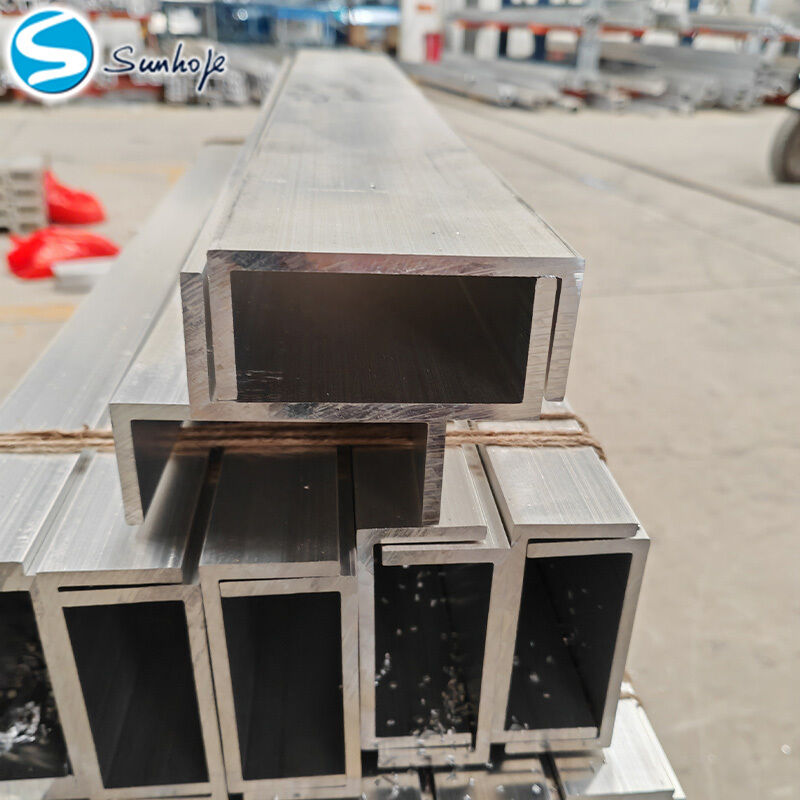

As a leading custom extruded aluminum U channel manufacturer, we engineer this extruded aluminum U channel specifically for the demanding environment of plate-fin oil coolers. Fabricated from premium 6061-T6 aluminum U channel alloys, this U-channel aluminum profile is precision-extruded to deliver an optimal balance of lightweight construction, high thermal conductivity, and long-term structural integrity. It functions as the essential framework and fluid pathway component within brazed heat exchanger assemblies.
This structural aluminum U channel acts as both the flow channel frame and sealing bar in plate-fin oil coolers. It securely positions fins, defines independent oil and air passages, and forms the primary pressure-bearing architecture of the vacuum-brazed core.
Crafted from 6xxx and 3xxx series aluminum U shaped channel alloys, this profile offers thermal transfer capabilities that significantly outperform steel or stainless steel alternatives. The material selection is fully optimized for vacuum brazing compatibility, providing superior corrosion resistance and ensuring leak-free operation throughout the product lifecycle.
High Compatibility
Engineered for seamless integration with oil cooler brazing cycles. The alloy composition ensures excellent bonding with adjacent fins and partition plates, resulting in superior post-braze hermetic sealing.
Lightweight Construction
With a density roughly one-third that of steel, this aluminum U profile contributes to substantial weight reduction in finished oil coolers—a critical advantage for modern construction machinery and automotive thermal management systems.
Superior Thermal Efficiency
The inherent thermal conductivity of the aluminum channel profile ranges between 150 and 200 W/(m·K), driving a measurable increase in heat rejection and overall exchanger efficiency.
Flexible Customization
We accommodate full-process customization spanning cross-section geometry, alloy selection, and precision cut-to-length services. This agility allows for rapid response to unique oil cooler development specifications.
Integrated Raw Material Supply
Beyond the U-channel, we offer a comprehensive ecosystem of related aluminum materials, including fins, composite brazing sheets, and end caps, enabling a streamlined one-stop procurement experience.
| Item | Details |
|---|---|
| Application | Plate-fin oil coolers, hydraulic oil coolers, heat exchangers for construction machinery |
| Common Materials | 6061-T6 / 6063-T5 aluminum U channel / 3003 (customizable based on brazing process) |
| Cross-Section Profile | Aluminum U channel (customizable equal or unequal legs, rectangular opening) |
| Wall Thickness Range | 1.5 mm – 8.0 mm (adaptable to varying pressure requirements) |
| Cross-Section Dimensions | Opening width 10–200 mm, channel depth 5–150 mm (fully customizable) |
| Standard Length | 6000 mm (can be cut to lengths between 100 and 6500 mm as required) |
| Mechanical Properties | Tensile strength ≥205 MPa, Yield strength ≥170 MPa (for 6061-T6 aluminum U channel) |
| Surface Treatment | Polished / Mill finish aluminum channel / Oil-free degreasing (suitable for pre-brazing preparation) |
| Processing Capabilities | Extrusion with tolerance ±0.1 mm; customizable drilling, slotting, and bending available |
Hydraulic system oil coolers for construction and agricultural equipment
Automotive engine and transmission oil cooling modules
Lubrication oil coolers for generator sets and industrial air compressors
Plate heat exchanger units in high-pressure industrial hydraulic stations
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
1.Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
2.Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
3.Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
4.Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
1.Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
2.Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
3.Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
4.True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
