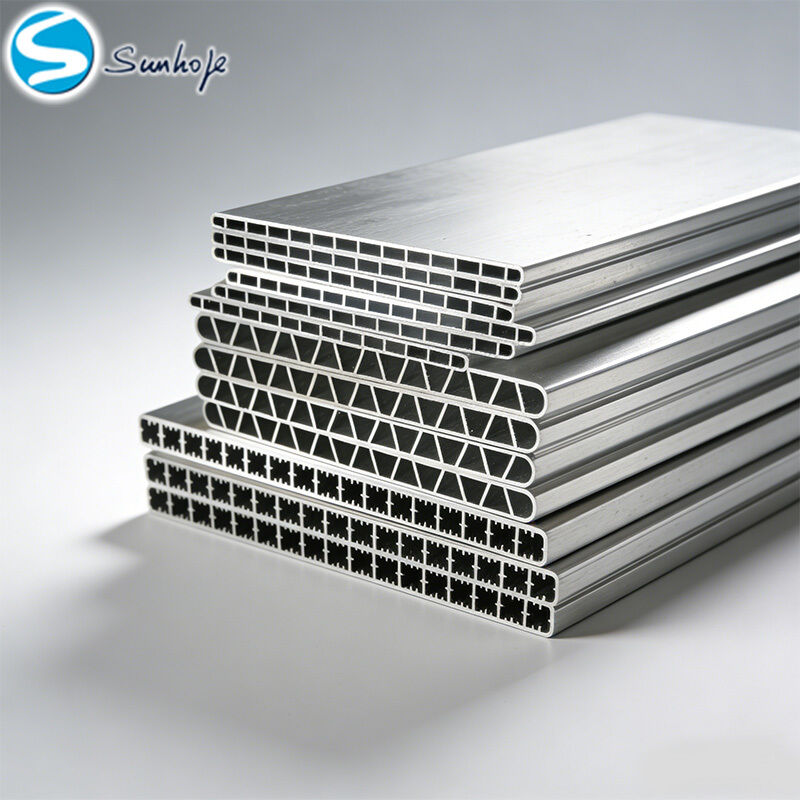

Upgrade your thermal management with our Lightweight High Efficiency Aluminum Microchannel Multi Port Flat Tube – also known as parallel flow aluminum tube or microchannel heat exchanger tube. This multi port extruded tube is the core component for automotive radiators, A/C condensers, and EV battery cooling systems.
Precision extruded as a seamless one‑piece structure, it integrates multiple parallel microchannels that dramatically improve refrigerant/coolant flow and heat exchange. Whether you manufacture automotive condenser tubes, battery liquid cooling plate tubes, or industrial heat exchangers, this lightweight heat transfer tube delivers higher efficiency, lighter weight, and uncompromising reliability. Fully compatible with R134a, CO₂, and other refrigerants.
Lightweight Champion
30–50% lighter than traditional copper heat exchangers – reduces vehicle energy consumption and extends EV range. A true lightweight heat transfer tube for modern electric vehicles.
40%+ Higher Heat Transfer
Microchannel design maximizes surface area per unit volume, delivering superior cooling and heating performance. Ideal for EV battery cooling tube applications.
Eco & Energy Saving
Works with low‑GWP refrigerants, cuts refrigerant charge, and lowers system operating costs.
Built to Last
Seamless extrusion – no welds, no weak points. Exceptional vibration, corrosion, and fatigue resistance. Made from AA3003 extruded flat tube alloy or high‑strength 6xxx series.
Tailor‑Made
Custom port count, dimensions, channel shape (rectangular / triangular), and surface treatment. Your ideal custom microchannel tube solution.
| Parameter | Standard Range | Common for Automotive / NEV |
|---|---|---|
| Length | 120 – 6000 mm | 250 mm ±0.3 mm |
| Width | 8 – 150 mm | 16–25 mm (A/C condenser), 40+ mm (battery cooling) |
| Thickness | 1 – 8 mm | 1.6 mm ±0.02 mm, 2–4 mm (charge air cooler) |
| Ports (channels) | 5 – 60+ | 12–38 (condenser), 40+ (EV battery cooling tube) |
| Hydraulic diameter | 0.5 – 2 mm | 0.8 – 1.2 mm (high‑efficiency) |
| Wall thickness | 0.15 – 0.5 mm | 0.2 – 0.3 mm (thin‑wall option) |
| Parameter | Value |
|---|---|
| Alloys | AA3003 (excellent corrosion resistance), AA3102, 6xxx series (high strength for EV) |
| Thermal conductivity | ≥180 W/(m·K) (premium 6xxx), ≥150 W/(m·K) (standard) |
| Corrosion protection | Zn spraying, coating, inner oxidation – salt spray test ≥500 h |
| Burst pressure | ≥15 MPa (meets high‑pressure EV & A/C requirements) |
| Operating temperature | -40°C to +150°C (extreme‑ready) |
| Shape | Key Benefit | Best For |
|---|---|---|
| Rectangular | Low flow resistance, uniform heat transfer | A/C condensers, evaporators |
| Triangular | High structural strength, anti‑deformation, enhanced turbulence | Charge air coolers, battery cooling plates, high‑pressure systems |
Automotive Aftermarket – Radiators, A/C condensers, charge air coolers, heater cores
New Energy Vehicles – Battery liquid cooling plates, motor controller cooling, EV A/C systems
Industrial & Beyond – Commercial A/C, data center liquid cooling, energy storage thermal management, aerospace
Customization Note
We manufacture strictly to customer drawings – 1:1 customisation of channel count, dimensions, hole shape, and surface finish. Contact us for your exact specifications.
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
